Junction boxes are key electrical cable management tools for protecting your circuits against damage, wear and tear, harsh weather, water, and dust ingress. They are commonly used in building construction, for wiring circuits, and electrical connections. They can also be used as a connector to a pattress, for connecting additional sockets to circuits, adding lighting points, and extending circuits.
When choosing a junction box, there are several factors to consider:
- The type of wire being used.
- The amount of current that will pass through the junction box.
- Environmental and weather conditions it will be subjected to, based on where it is used.
Fortunately, we offer an extensive range of junction boxes with different ingress protection ratings, metal or heavy-duty plastic construction, and capabilities such as waterproof and corrosion-resistant materials for your varying wiring accessory management needs.
Range of junction boxes:
20AMP Junction Box, 30AMP Junction Box, 60AMP Junction Boxes:
These are designed to protect and insulate your circuits against harsh conditions, damage etc. They are also ideal for extending power or lighting circuits, repairing damaged cables, and providing a connection between fixed wiring and lighting.
Choc Box:
Choc boxes are a type of junction box that can be used for fixed wiring or an in-line connector when used with cable restraints, for applications like terminating solid and stranded cable to flexible cable. The choc boxes we offer feature fixing screws for ease of use and a one-piece lid with a snap close and quick release function. These are ideal for domestic, residential, commercial and industrial wiring applications.
Downlight Junction Boxes:
These are specially designed to provide a quick and easy way of connecting fixed wiring to the flexible cables of downlighter fittings. Key features of a downlight junction box include cable clamps that can be reversed for single or double cable entry; terminals on one side to maximise cabling space; and rear holes for fixing to the wall when required.
Maintenance Free Junction Boxes:
As suggested by the name, it is a maintenance-free and secure way of connecting fixed wiring in indoor commercial and residential buildings. This is because once installed in a circuit, it does not require any further maintenance, testing, or inspection. They are also designed to be compact and easy to use in hard-to-access areas whilst ensuring ample wiring space.
Wiska Boxes:
Wiska junction boxes are a popular choice amongst electricians across the UK. They are extremely versatile with a unique design that allows for horizontal or vertical mounting, thereby giving you increased flexibility in your installation processes. The boxes also feature a mounting clip for quick Snap-On fixing, captive quick-release lid screws for easy access to your cables, elastic self-sealing membranes for cable entry without the need for mechanical devices, and integrated M20 threads with no locknuts required.
Wiska boxes are great for extending/repairing outdoor circuits or terminating cables safely and securely.
All-in-all, if you’re looking for a reliable wiring solution for extending or repairing outdoor circuits, look no further than our range of Wiska boxes.
Our range of Wiska Junction Boxes, available in black, white or grey:

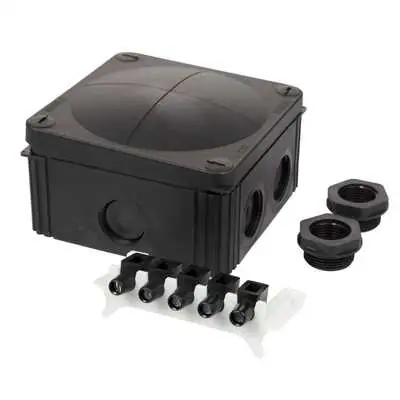

The Wiska 10061779 COMBI 607/5/S 41A IP66/67 5 Pole Junction Box (black)
This is an impact-resistant, flame-retardant, and halogen-free electrical, 5-pole terminal box with a 6mm² terminal size. With its ability to also withstand fats, oils, acids, strong/weak alkaline solutions, and alcohol, this box is perfect for use in extreme outdoor conditions. Additionally, it is resistant to ultraviolet which makes it ideal even in hot locations.
Wiska 10061779 COMBI 607/5/S 41A IP66/67 5 Pole Junction Box, Black
It features a unique Wiska-bellied cover that offers 10% more space inside the junction box with a rust-free, quick-release lid that ensures quick and easy access. Furthermore, it provides 30% labour savings thanks to the faster cable entry through the soft-sealing diaphragm.
Using the membrane entry, it can accommodate cables with a diameter of 5, 2 – 17mm, ensuring an IP66 ingress protection rating whilst using the threaded entry with the ESKV cable gland can accommodate cables of diameter 9, 0- 17mm, offering an IP67 ingress protection rating. With this, the Wiska box is very versatile and can be used in a variety of applications. For easy mounting, it also features four internal openings outside of the sealing area. Additionally, it is equipped with seven elastic, self-sealing puncture membranes for cable entry on the side and three on the bottom.
Other features include:
- Seven integrated M25 threads for mounting without a lock nut,
- Four captive cover screws,
- Rust-free captive quick-release fasteners – quarter turn needed for closing of the box.
The Wiska 10062215 COMBI 1010/5/S 57A IP66/67 5 Pole Junction Box with Knockouts (black)
Similar to the previous junction box, this Wiska 10062215 box provides 10% more room inside due to the bellied cover. Likewise, it also features 8 integrated M20 threads for cable without the need for mechanical devices as cable glands can be mounted directly into the box with no locknuts required. Additionally, this junction box features a patented combination of thread and membrane that saves installation time. This is also thanks to the self-sealing membrane in the ground that ensures the clean assembly of cable outputs from the wall.
Wiska 10062215 COMBI 1010/5/S 57A IP66/67 5 Pole Junction Box with Knockouts, Black
Other features include:
- Flame-retardant, halogen-free, ultraviolet-resistant, shatter-proof, and animal/vegetable fats/mineral oil/diesel/weak acids/strong and weak alkaline solution and alcohol-resistant construction.
- Comes complete with 14 round-shaped knockouts – 10 knockouts side 5 x M25/M32; 2 x M20; 3 x M20/M32 and, 4 knockouts in the bottom 2 x M25/M32; 2 x M20/M25.
- Including terminal block 5 poles, 10mm².
- Including QUIXX EMS self-sealing membrane screw 2 x M25; 1 x M32.

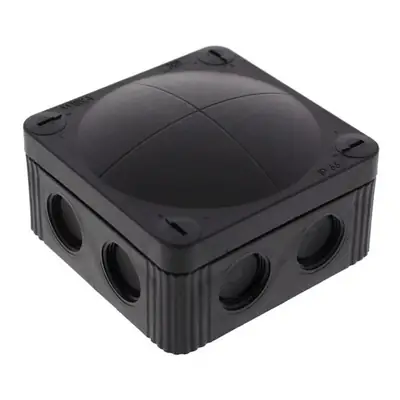

The Wiska 10060580 COMBI 308 IP66/67 Junction Box with Terminals (black)
This is a Wiska junction box with the same features and capabilities as the previous junction boxes mentioned however it comes with 4mm² terminals. It is designed to work with cables that have a diameter ranging from 3mm to 12mm.
Wiska 10060580 COMBI 308 IP66/67 Junction Box with Terminals, Black
Other features include:
- 4 captive quick-release lid screws.
- 8 elastic self-sealing membranes for cable entry without mechanical devices.
- 8 integrated M20 threads with no locknuts required.
- Mounting clip for quick snap-on fixing.

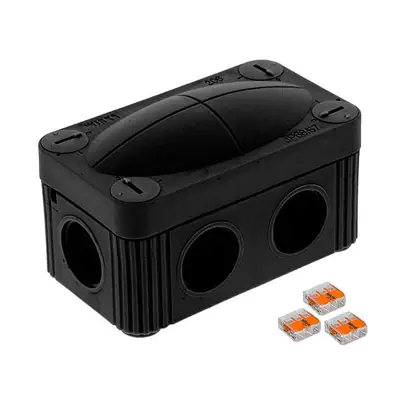

The Wiska 10109900 COMBI 206 IP66/67 Waterproof Junction Box with 3x WAGO Connectors (black)
Introducing the waterproof, IP66-rated polypropylene junction box complete with 3 x 221-413 Wago 3 terminal connectors which will take up to 4mm cables. This junction box is perfect for outdoor applications where space is limited, such as LED lighting, and CCTV systems.
Its compact and robust design is suitable for wall mounting with 6xM20 side membrane threaded entries ensuring maximum installation flexibility.
Wiska 10109900 COMBI 206 IP66/67 Waterproof Junction Box with 3x WAGO Connectors, Black
Other features include:
- Includes terminal carrier on quick mounting plate.
- 4 captive cover screws.
We also offer Wiska junction boxes that come with knockouts and Wago connectors such as the

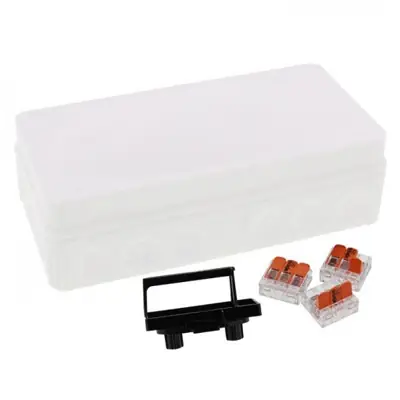

Wiska 10110033 COMBI 116 24A IP66 Junction Box (white)
This is also used to protect and insulate your circuits against damage, wear and tear, dust, and harsh weather conditions.
Wiska 10110033 COMBI 116 24A IP66 Junction Box with Knockouts & Wago Connectors (white)
Additionally, you can accessorise with an armoured cable earthing plate kit such as the Wiska EC308 Brass Earthing Plate Kit which is suitable for earthing Wiska Combi 308 weatherproof or surface mounting enclosures and junction boxes.

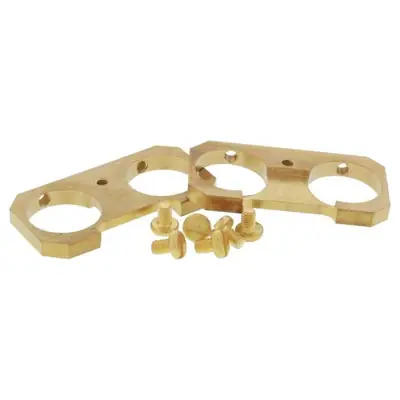

The Wiska EC308 Brass Earthing Plate Kit for Combi 308 Enclosure
This comes as a pack of two and is ideal for speeding up the installation of SWA cables. Each plate features 2 x M20 entries with 3 tapped M4 screw holes whereby 1 is for an earth tail connection and the other 2 for clamping onto the brass BW20 or CW20 SWA glands.
Wiska EC308 Brass Earthing Plate Kit for Combi 308 Enclosure (Pack of 2)
In conclusion, what exactly sets Wiska junction boxes apart?
- 10% more room inside thanks to the bellied cover.
- Solid thermoplastic housing made from 2 different moulded materials.
- 8 elastic self-sealing membranes for cable entry without mechanical devices, with integrated M20 threads – no locknuts necessary.
- Quick-release lid screws made of plastic will not rust and stay securely in place.
- Weatherproof, resistant to ultraviolet, shatterproof, impact resistant, flame retardant and halogen-free construction.
