Wago 222-415 | 32A 5 Way Compact Lever Operated Cable Splicing Connector Terminal Block, Grey (Pack of 40)

Part Number/SKU: 222-415Category:

£14.93 ex VAT

£17.92 inc VAT

🚚 Delivery: Next working day if ordered by 4pm!

We only have 4 remaining! We are waiting for further stock.

Wago 222-415 | 32A 5 Way Compact Lever Operated Cable Splicing Connector Terminal Block, Grey (Pack of 40)

£14.93 ex VAT

£17.92 inc VAT

  • The Wago 222-415 32A 5 Way Compact Lever Operated Cable Splicing Connector Terminal Block is a 5-way terminal block with side-entry wiring and a lever clamp system with a 32-amp maximum current rating and 400V maximum voltage rating.
  • The sturdy lever clamp system does not require any tools for completion, protecting the conductor from accidental damage or coming loose, perfect for free wiring.
  • It is versatile in its usage throughout domestic and industrial applications, providing an easy plug-in mounting installation process which saves users both time and money with its simple and effective compact design.
  • The Wago 222-415 is designed to connect solid, stranded, and fine-stranded conductors.
  • It has a compact and effective housing design which is perfect for installations in areas with restrictions in spacing, and for maximising wiring space in a junction box.
  • The Wago 222-415 is provided with two test ports for easy testing of all standard test probes, and a reduced operating force for easy splice termination.
  • In addition, it also comes supplied with two test ports for easy testing of all standard test probes, and a reduced operating force for easy splice termination.
  • It also has a length indicator which details the appropriate length that the wire should be stripped to ensuring all live conductors are protected from accidental contact.
  • The Wago 222-415 terminal block has a required cable stripped length of 9 to 10mm, with the solid and stranded conductor sizes ranging from 0.08mm²-2.5mm² whilst the fine stranded conductor size ranges from 0.08mm²-4mm².
  • The Wago 222-415 compact terminal block complies with EN 60664 standards.

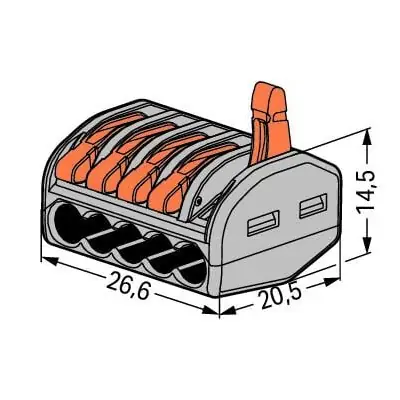

  • Dimensions of H 14.5mm x W 26.6mm x D 20.5mm.

    • no downloads/datasheets currently available.
