Wago 222-412 | 32A 2 Way Compact Lever Operated Cable Splicing Connector Terminal Block, Grey (Pack of 50)

Part Number/SKU: 222-412Category:

£10.12 ex VAT

£12.14 inc VAT

🚚 Delivery: Next working day if ordered by 4pm!

Wago 222-412 | 32A 2 Way Compact Lever Operated Cable Splicing Connector Terminal Block, Grey (Pack of 50)

£10.12 ex VAT

£12.14 inc VAT

  • The Wago 222-412 32A 2 Way Compact Lever Operated Cable Splicing Connector Terminal Block is a side-entry wiring and 2-way terminal block with operating lever lock and a maximum current and voltage rating of 32A and 400V.
  • It has a compact housing which is ideal for installations in areas where spacing is restricted and maximising wiring space throughout restricted environments such as a junction box.
  • It is ideal for use throughout a wide range domestic and industrial applications and designed to provide an easy plug-in mounting installation process, saving you time and money with its simple and effective compact design.
  • The Wago 222-412 is designed to connect solid, stranded, and fine-stranded conductors, providing an amazingly simple installation process which saves users both time and money as it does not require any tools.
  • It uses a simple button operated lever clamp system which does not require tools for completion, providing a fast, easy, and secure termination.
  • In addition, the 2-way lever operated cable splicing connector terminal block comes supplied with two test ports for easy testing of all standard test probes, and a reduced operating force for easy splice termination.
  • The sturdy lever clamp effectively protects the conductor from accidental damage or coming loose, perfect for free wiring.
  • There is a length indicator on the case, detailing the appropriate length that the wire should be stripped to ensuring all live conductors are protected from accidental contact which is 9-10mm for the Wago 222-412 terminal block.
  • The solid and stranded conductor sizes range from 0.08mm²-2.5mm² whilst the fine stranded conductor size ranges from 0.08mm²-4mm².

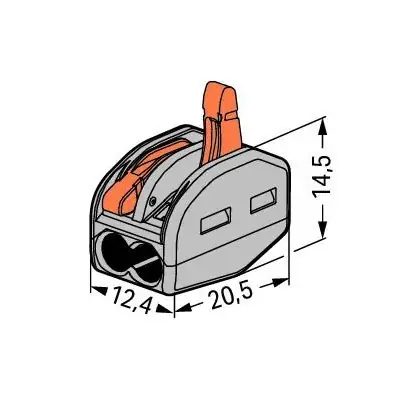

  • Dimensions of H 14.5mm x W 12.4mm x D 20.5mm.

    • no downloads/datasheets currently available.
