Timeguard TRT049N | 10A 16 Way Wiring Centre Junction Box

Part Number/SKU: TRT049NCategory:

£15.08 ex VAT

£18.10 inc VAT

This item is currently out of stock.

Timeguard TRT049N | 10A 16 Way Wiring Centre Junction Box

£15.08 ex VAT

£18.10 inc VAT

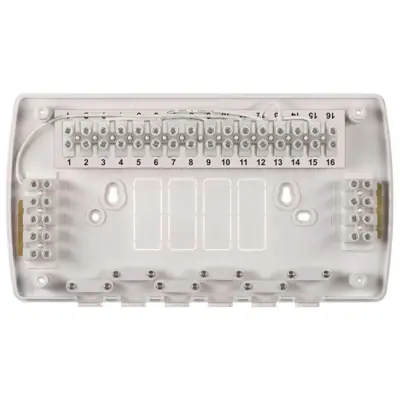

  • The Timeguard TRT049N 10A 16 Way Wiring Centre Junction Box is a robust flame-retardant plastic box with ample space, easily accessible terminals, multiple fixing holes and cable entry knockouts, 16 terminal block circuits, 4 earth terminals and 6 internal cable clamps.
  • The cable clamps are ideal for securing incoming and outgoing cable runs.
  • It can be used with all popular heating systems, providing a safe and convenient way of wiring all connections to and from a heating system, making system testing a clean and simple task.
  • It is designed to be surface mounted using the wall fixing kit supplied.
  • In addition, the Timeguard TRT049N is suitable for internal use only.
  • Dimensions of H 90 mm x W 135 mm x D 30 mm.

    • Additional information

    Wiring Method

    Wired
    Length Min Max

    90 mm
    Width

    135 mm
    Depth

    30 mm
    Voltage

    230 V
    Current Rating

    10 A
    Temperature Range

    0 | 40 Degrees C
    CE Approved

    Y
    Warranty

    3 Years
    no downloads/datasheets currently available.
