SWA 95-12TQ | M12 95mm² Copper Lug Tube Terminal

Part Number/SKU: 95-12TQCategory:

£1.01 ex VAT

£1.21 inc VAT

🚚 Delivery: Next working day if ordered by 4pm!

SWA 95-12TQ | M12 95mm² Copper Lug Tube Terminal

£1.01 ex VAT

£1.21 inc VAT

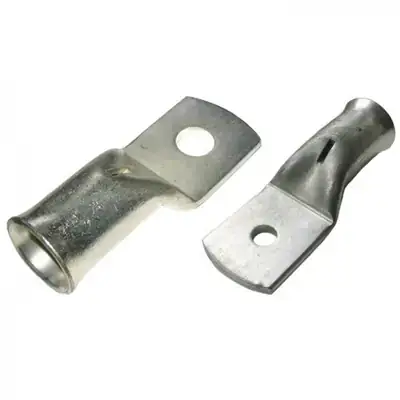

  • The SWA 95-12TQ M12 95mm² Copper Lug Tube Terminal is manufactured from 99.5% copper and fully annealed to ensure optimum ductility and stop deformation like cracking or splitting when crimping.
  • It features an inspection window enabling the installer to provide full/correct insertion of the conductor and a flared entry for a smoother transition from the terminal to the conductor.
  • In addition, it is designed with a bell-mouthed entry for easy cable insertion.
  • It has an internal barrel diameter that suits standard cables as defined in BS 6360 and provides reliable and easy electrical and mechanical connections.
  • It also has the cable size and M12 12mm hole size identified on the palm ensuring the correct tooling and dies are used.
  • The SWA 95-12TQ is useful for terminating mains/power cables such as switch gear, transformer or motor terminal blocks and commercial distribution boards.
  • It is also suitable for power cables up to 1000V.
  • It complies with BS EN 12449 BS 1872/6360 standards.

    • Additional information

    Voltage (max)

    1000 V
    Insulated

    No
    Terminal Material

    Copper
    Cable Size Range

    95sq mm mm2
    Hole/Stud Size

    M12 mm
    Length Min Max

    52 mm
    Width

    24.3 mm
    Standards

    BS EN 12449 BS 1872/6360
    no downloads/datasheets currently available.
