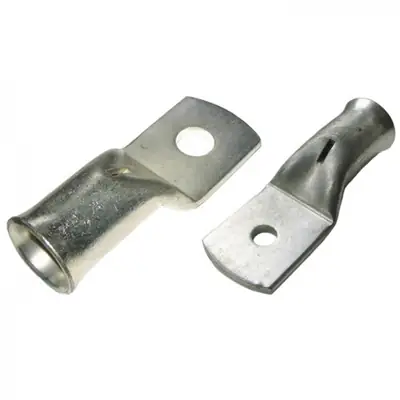

SWA 35-6TQ | M6 35mm² Copper Lug Tube Terminal

Part Number/SKU: 35-6TQCategory:

£0.38 ex VAT

£0.46 inc VAT

This item is currently out of stock.

SWA 35-6TQ | M6 35mm² Copper Lug Tube Terminal

£0.38 ex VAT

£0.46 inc VAT

  • The SWA 35-6TQ M6 35mm² Copper Lug Tube Terminal is manufactured from 99.5% copper and fully annealed to ensure optimum ductility and stop deformation like cracking or splitting when crimping.
  • Designed with a bell mouthed entry for easy cable insertion.
  • Provides reliable and easy electrical and mechanical connections.
  • Used to terminate mains/power cables such as switch gear, transformer or motor terminal blocks and commercial distribution boards.
  • Suitable for power cables up to 1000V.

    • Additional information

    Voltage (max)

    1000 V
    Insulated

    No
    Terminal Material

    Copper
    Cable Size Range

    35sq mm mm2
    Hole/Stud Size

    M6 mm
    Length Min Max

    41 mm
    Width

    15.5 mm
    Standards

    BS EN 12449 BS 1872/6360
    no downloads/datasheets currently available.
