SWA 25BS | 25mm Copper Tube Butt Splice Crimp Connector

Part Number/SKU: 25BSCategory:

£0.35 ex VAT

£0.42 inc VAT

🚚 Delivery: Next working day if ordered by 4pm!

SWA 25BS | 25mm Copper Tube Butt Splice Crimp Connector

£0.35 ex VAT

£0.42 inc VAT

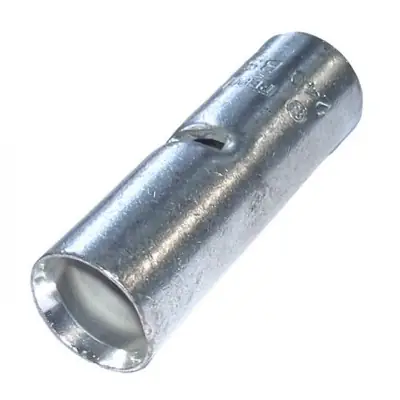

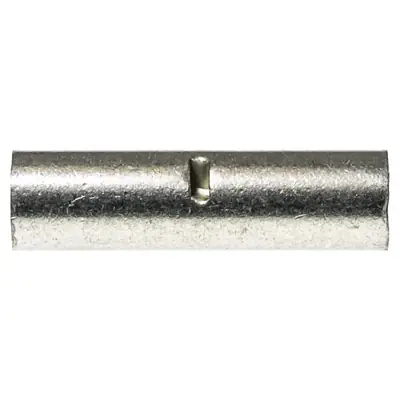

  • The SWA 25BS 25mm Copper Tube Butt Splice Crimp Connector is manufactured from 99.5% copper and fully annealed to ensure optimum ductility and stop deformation such as cracking and splitting when crimping.
  • Featuring an internal taper on both ends to ease insertion of the conductor and a central stop to give perfect positioning.
  • SWA terminals have the cable sizing identified on the splice making sure you always have the correct tools and dies.
  • Heavy duty.

    • Additional information

    Product

    Butt Splice
    Extra Information

    25Sq.mm Conductor
    Material

    Copper
    Length Min Max

    35 mm
    Diameter

    9.5 mm
    Standards

    BS EN 12449 BS 1872/6360
    no downloads/datasheets currently available.
