SWA 150-10TQ | M10 150mm² Copper Lug Tube Terminal

Part Number/SKU: 150-10TQCategory:

£2.05 ex VAT

£2.46 inc VAT

🚚 Delivery: Next working day if ordered by 4pm!

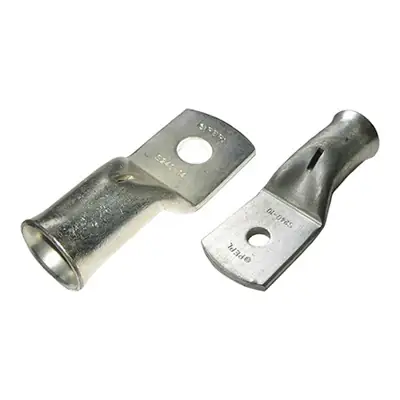

SWA 150-10TQ | M10 150mm² Copper Lug Tube Terminal

£2.05 ex VAT

£2.46 inc VAT

  • The SWA 150-10TQ M10 150mm² Copper Lug Tube Terminal is manufactured from 99.5% copper and fully annealed to ensure optimum ductility and stop deformation such as cracking and splitting when crimping.
  • Used to terminate mains or power cables whether that be switch gear, motor and transformer terminal blocks or commercial distribution boards.
  • Provides a clean, easy, reliable and quick electrical and mechanical connection.
  • Offers an inspection window which allows the installer to confirm full and correct insertion of the conductor.
  • Flared entry to allow for smooth transitions between terminal and conductor.
  • SWA terminals have the cable and hole size identified on the palm making sure you always have the correct tools and dies.

    • Additional information

    Voltage (max)

    1000 V
    Insulated

    No
    Terminal Material

    Copper
    Cable Size Range

    150sq mm mm2
    Hole/Stud Size

    M10 mm
    Length Min Max

    78 mm
    Width

    30 mm
    Standards

    BS EN 12449 BS 1872/6360
    no downloads/datasheets currently available.
