Schneider Electric A9F54340 | Acti 9 iC60H 40A 10kA 3 Pole Type C Miniature Circuit Breaker MCB Module, White

Part Number/SKU: A9F54340Category:

£59.01 ex VAT

£70.81 inc VAT

🚚 Delivery: Next working day if ordered by 4pm!

We only have 2 remaining! We are waiting for further stock.

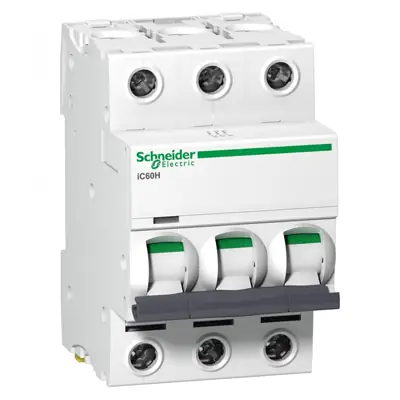

Schneider Electric A9F54340 | Acti 9 iC60H 40A 10kA 3 Pole Type C Miniature Circuit Breaker MCB Module, White

£59.01 ex VAT

£70.81 inc VAT

  • The Schneider Electric A9F54340 Acti 9 iC60H 40A Triple Pole 10kA Type C Miniature Circuit Breaker MCB Module is a 40A rated current and C tripping curve minimum design impact multi-standard, high energy efficient circuit breaker ideal for low voltage modular systems.
  • It provides wire and circuit protection against short-circuit currents and overload currents in addition to user protection from indirect contact with IT and TN neutral systems.
  • It is designed to be installed to the Schneider Acti9 Isobar distribution boards, simplifying the final distribution operations in buildings and industrial facilities for every application.
  • In contrast to traditional fuses, it can be manually reset without the need to replace wires making it more convenient than traditional fuses, with improved safety features.
  • It also has a fault tripping indication brought to attention by a red mechanical indicator in the front face of the circuit breaker.
  • If the nominal current designed for the circuit breaker were to increase even by the littlest amount, the bimetal significantly heats up so that after a period of time, the switching mechanism will trip.
  • This provides a safer installation process, accompanied by its compliance with IEC/EEN 60898 and IEC/EN 60947 2 safety standards.
  • In addition, it has a positive contact indication meeting BS 7671 regulations.
  • It is ideal in ensuring the necessary protection for industrial and commercial use, including polluted networks and environments.
  • It has a type C tripping mode, which is 5 to 10 times the rated current, further ensuring the protection of circuits and general applications.
  • We also stock the miniature circuit breakers in type B and D curve.
  • The MCB circuit breaker has a unique VisiTrip indicator which shortens the intervention time by underlining faulty circuits.
  • What’s more, the VisiSafe green strip enables the physical opening of the contacts to corroborate downstream maintenance.
  • The SCHNEIDER Electric A9F54340 IC60H can be clipped onto a DIN rail.
  • It has an electrical endurance up to 10,000 cycles as well as, a mechanical endurance up to 20,000, with its fast-closing mechanism, independent of manual operation, helping to increase its service life.
  • In addition, its terminals have an Ingress Protection rating IP20 which means the product is touchproof and protected from any dust or objects that are greater than 12mm in size.
  • Dimensions of L 85mm x W 54mm x D 78.5mm.

    • Additional information

    Product

    Circuit Breaker
    Product Type

    MCB
    Pole Configuration

    TP
    Mounting

    DIN Rail
    Ingress Protection

    IP20
    Trip Type

    Type C
    Short Circuit Rating

    15 kA
    Height

    85 mm
    Width

    54 mm
    Depth

    78.5 mm
    Current Rating

    40 A
    Voltage

    440 V
    Standards

    IEC/EN 60947-2 IEC/EN 60898-1
    Unit Weight

    0.375 kg
    no downloads/datasheets currently available.
