Schneider Electric A9D05806 | Acti9 iC60H 6A 30mA 10kA Single Pole + Neutral SPN Type C RCBO

Part Number/SKU: A9D05806Category:

£62.23 ex VAT

£74.68 inc VAT

🚚 Delivery: Next working day if ordered by 4pm!

Schneider Electric A9D05806 | Acti9 iC60H 6A 30mA 10kA Single Pole + Neutral SPN Type C RCBO

£62.23 ex VAT

£74.68 inc VAT

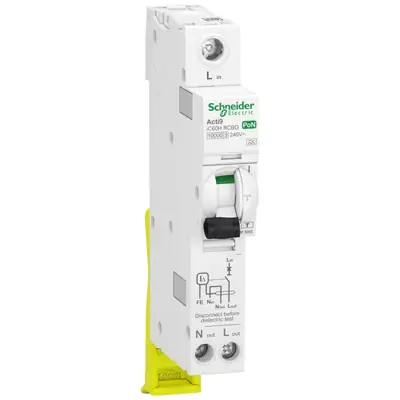

  • The Schneider Electric A9D05806 Acti9 iC60H 6A 30mA 10kA Single Pole + Neutral SPN Type C RCBO is designed to be installed with Schneider Acti9 Isobar distribution boards.
  • The compact design is perfect for space saving solutions.
  • Clip on DIN rail mounting mode.
  • Padlockable in on/off positions.

    • Additional information

    Product

    RCBO
    Pole Configuration

    SP+N
    Mounting

    DIN Rail
    Ingress Protection

    IP20
    Trip Type

    Type C
    Short Circuit Rating

    10 kA
    Sensitivity

    30 mA
    Cable Capacity

    16 mm2
    Height

    110 mm
    Width

    18 mm
    Depth

    72 mm
    RCD Type/Class

    A
    Current Rating

    6 A
    Voltage

    240 V
    Standards

    BS EN 61009-1 IEC 61009-1 IEC 61009-2-2
    Warranty

    1.5 Years
    Unit Weight

    0.156 kg
    no downloads/datasheets currently available.
