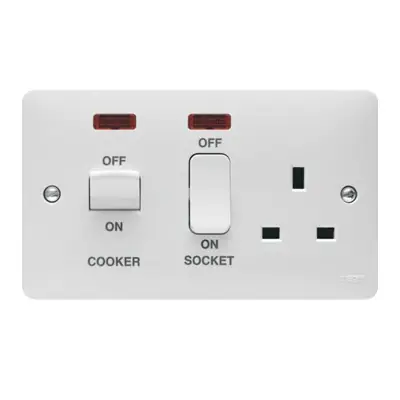

Name: Hager WMCC50N | Sollysta 45A Double Pole DP Cooker Control Switched Socket Outlet with Neon, White
Brand: Hager
SKU: WMCC50N
Price: 14.16 GBP
Availability: OutOfStock

The Hager WMCC50N Sollysta 45A Double Pole DP Cooker Control Switched Socket Outlet with Neon is a cooker control switch with a switched socket and neon light indicators on both switches.

The switch and socket are double-poled, with twin earth included as standard.

It has a shallow depth, moulded cable lead ins, captive and backed-off terminal screws, in-line terminals, wire end stops, and a unique neutral loop terminal.

For additional safety, it has a 3-pin operated shutter mechanism on the sockets which prevents access to live parts.

The HAGER wall switches are suitable for isolation and are the first to have a neutral loop terminal contained within the application, allowing contractors to complete the loop connection in the switch rather than in the ceiling rose.

This also helps reduce cabling and uneasy time spent working at ceiling level.

All the terminals are marked and upward facing, with the capacity of terminals measuring 2 x 6mm² and 1 x 16mm².

It comes complete with backed-off screws held captive to prevent loss, wired end stops and clear visible white labelling off a dark grey background, M3.5 x 30mm long screw fixings, a neon LED Indicator and screw cover supplied.

Its sleek, gloss white exterior and slim frame provide a neat and modern finish to any room whilst the white moulded range has a high impact strength and is scratch resistant for safety.

The Hager WMCC50N is touch-proof and resistant to dust ingress or objects that are over 12mm thanks to its IP20 rating.

It also complies with BS 4177 standards and meets the needs of BS7671.

Dimensions of D 39.6mm x W 146mm x H 86mm.

no downloads/datasheets currently available.
