Hager ARR916U | 16A 30mA 6kA 1 Module Type B Single Pole + Neutral SPN AFDD Combined RCBO

Part Number/SKU: ARR916UCategory:

£83.45 ex VAT

£100.14 inc VAT

🚚 Delivery: Next working day if ordered by 4pm!

We only have 7 remaining! We are waiting for further stock.

Hager ARR916U | 16A 30mA 6kA 1 Module Type B Single Pole + Neutral SPN AFDD Combined RCBO

£83.45 ex VAT

£100.14 inc VAT

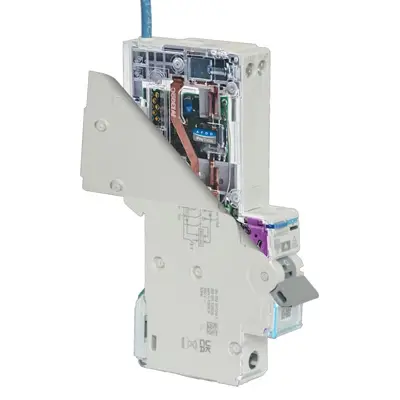

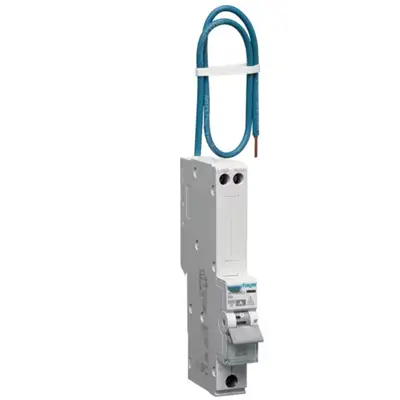

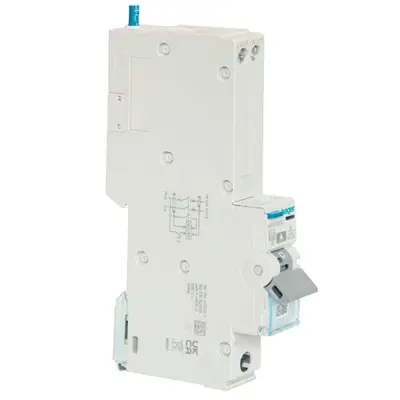

  • The Hager ARR916U 16A 30mA 6kA 1 Module B Curve Type A Single Pole + Neutral SPN integrates an RCBO with an Arc Fault Detection device (AFDD), delivering advanced safety features.
  • ProTools, the onboard diagnostic software, efficiently identifies eight statuses, simplifying fault finding for easy fixes within your consumer unit.
  • The 1 module configuration allows for efficient, space-saving installation within Hager consumer units.
  • Featuring a sensitivity of 30mA and a B curve type, this device ensures optimal protection against faults, complemented by its 6kA rated short-circuit breaking capacity for enhanced safety.
  • Compliant with BS EN 62606 and BS EN 61009-1, the ARR916U is meticulously crafted to meet the latest wiring regulations.
  • Product dimensions: (H) 125mm x (W) 17.5mm x (D) 70mm.

    • Additional information

    Short Circuit Rating

    6 kA
    Current Rating

    16 A
    Trip Type

    Type B
    no downloads/datasheets currently available.
