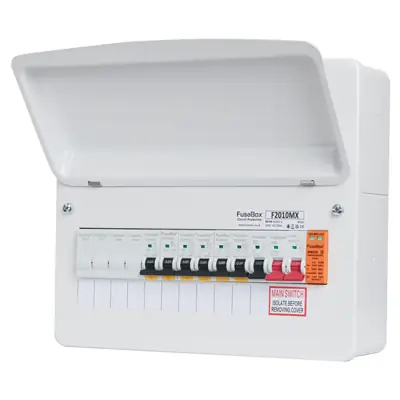

FuseBox F2010MX | 100A 10 Way Main Switch Incomer Type 2 Surge Protector Consumer Unit with Tail Clamp

Part Number/SKU: F2010MXCategory:

£78.51 ex VAT

£94.21 inc VAT

This item is currently out of stock.

FuseBox F2010MX | 100A 10 Way Main Switch Incomer Type 2 Surge Protector Consumer Unit with Tail Clamp

£78.51 ex VAT

£94.21 inc VAT

  • The FuseBox F2010MX 100A 10 Way Main Switch Incomer Type 2 Surge Protector Consumer Unit with Tail Clamp is constructed using electro-galvanised steel (zinc).
  • Features both earth and terminal bars at the top.
  • Raised and removable DIN rail.
  • Has knockouts on all faces and includes a tail clamp.
  • Offers protection against transient over voltages and the secondary effects of lightning strikes.

    • Additional information

    Product

    Consumer Unit
    Current Rating (max)

    100 A
    Rated Voltage

    230 V
    Installation Type

    Domestic
    Incomer Included?

    Y
    Door/Lid Type

    Solid
    Incomer Type?

    Switch Disconnector
    Incomer Current Rating?

    100 A
    Pole Configuration

    Double Pole (2P)
    Outgoing Ways

    10 Way
    Metered

    N
    Mounting

    Surface
    Ingress Protection

    IP2XC
    Split Load

    N
    Surge Protection?

    Yes
    Surge Protector Type

    Type 2
    RCD s Included

    N
    Outgoing Devices Included

    N
    High Integrity

    No
    Body Material

    Steel
    Body Colour

    Cream RAL 9001
    Body Finish

    Powder Coated
    Height

    259 mm
    Width

    306 mm
    Depth

    113 mm
    Number of Phases

    Single
    18th Edition Compliant

    Y
    Standards

    BS EN 61439-3
    no downloads/datasheets currently available.
