Europa SISH325N | 400V 32A 3 Pole + N + E IP44 Horizontal Interlocked Socket, Red

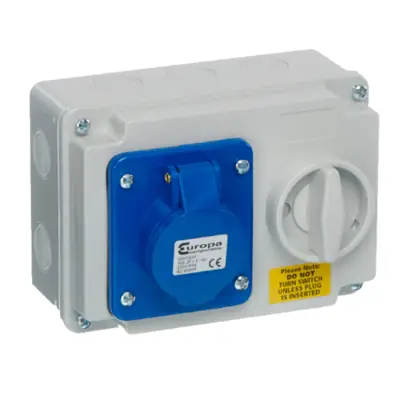

Europa SISH323P | 230V 32A 2 Pole + E IP44 Horizontal Interlocked Socket, Blue

£43.91 ex VAT

£52.69 inc VAT

Europa SISH325N | 400V 32A 3 Pole + N + E IP44 Horizontal Interlocked Socket, Red

Part Number/SKU: SISH325NCategory:

£44.33 ex VAT

£53.20 inc VAT

🚚 Delivery: Next working day if ordered by 4pm!

Europa SISH325N | 400V 32A 3 Pole + N + E IP44 Horizontal Interlocked Socket, Red

£44.33 ex VAT

£53.20 inc VAT

  • The Europa SISH325N 400V 32A 3 Pole + N + E IP44 Horizontal Interlocked Socket is a compact sized, self-extinguishing and shock resistant interlocked socket manufactured from thermoplastic for enhanced safety.
  • It is also interlocked for added security.
  • It has a 2.5mm to 10mm² giving it a 32A current rating.
  • It is designed to provide a safe and frequent connection and disconnection through a mechanical interlock, with a high-quality plastic housing which is resistant to chemical and heavy-duty usage damage.
  • It is ideal for industrial installations such as in the chemical industry, airports, sawmills, and hospitals, providing a connection to the electrical mains rated at higher voltage and current than standard household plugs and sockets.
  • As it is an interlocked socket, it has interlocking capabilities which helps ensure a safe operation, and a built-in switch disconnector, a PBT enclosure and clear terminal markings for improved safety and ease of operation.
  • Before and during operation, it is recommended to ensure all connections and terminals have the appropriate tightness as loose terminals can result in fire hazards or heat damage to the cable due to overheating.
  • It has 5 pins, 3 poled and neutral and earth, and is manufactured from self-extinguishing & shock resistant thermoplastic.
  • It comes equipped with two cable inlets M25, M32 one top and bottom and Inox screws which are chemical agent resistant.
  • In addition, it has an ABS Enclosure and is pad-lockable in the On and Off positions for added security, as well as multiple knockouts for easier installation.
  • The Europa SISH325N is CE and SEMKO certified and made to IEC 60309 standards.
  • In addition, it has an IP44 rating, protecting the socket against dust ingress and solid particles over 1mm in size and from low velocity water particle exposure from any direction.

    • Additional information

    Current Rating

    32 A
    Voltage

    400 V
    Ingress Protection

    IP44
    no downloads/datasheets currently available.
