Eaton 60KXTNC2F | Exel 2 351x310x173mm 63A 415V 3 Pole + Neutral Metal Fused Switch Disconnector, Grey

Part Number/SKU: 60KXTNC2FCategory:

£341.76 ex VAT

£410.11 inc VAT

This item is currently out of stock.

Eaton 60KXTNC2F | Exel 2 351x310x173mm 63A 415V 3 Pole + Neutral Metal Fused Switch Disconnector, Grey

£341.76 ex VAT

£410.11 inc VAT

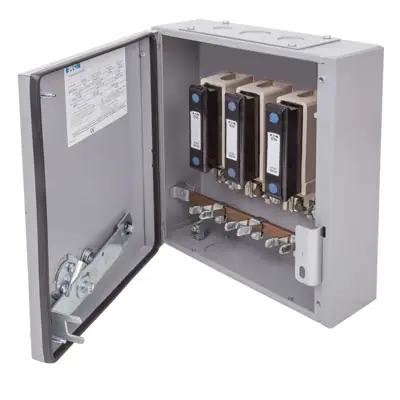

  • The Eaton 60KXTNC2F Exel 2 351x310x173mm 63A 415V 3 Pole + Neutral Metal Fused Switch Disconnector is a surface mounted, enclosed 63A current rated circuit protection and distribution board device with triple pole and neutral make first break last configuration.
  • It is used to isolate electrical equipment from the mains supply.
  • It typically contains a fuse holder and switch that allows a unit to be switched on and off.
  • It is manufactured from heavy-duty sheet steel which is rust-proof with a grey finish.
  • The Eaton 60KXTNC2F also features porcelain bases fitted with non-ferrous conducting components for its interiors.
  • Some other key features include: chromium-plated front operating handles with on(I)/off(O) switch position indicators, gasketed doors, internal fixings that enable side-by-side mounting of units; units with removable moving contact assemblies to facilitate wiring; and removable blank top & bottom endplates that incorporate up to 6 knockouts.
  • In addition, the switch can be locked on or off with a padlock and is fitted with HRC fuse links of a maximum rating that can also accept fuse links of a lower rating.
  • It is also type tested to BS EN 60947-3 standards with an IP41 rating which means it is protected against tools and small wires greater than 1mm.
  • Dimensions of H 351mm x W 310mm x D 173mm x Maximum cable size 35mm².

    • Additional information

    Product

    Switchfuse
    Product Type

    Fuse
    Mounting Type

    Surface
    Ingress Protection

    IP41
    Material

    Sheet Steel
    Finish

    Painted
    Length Min Max

    351 mm
    Width

    310 mm
    Depth

    129 mm
    Voltage Rating

    415 V
    Rated Current

    63 A
    Breaking Current

    80 kA
    Standards

    BS EN 60947-3 BS 88
    no downloads/datasheets currently available.
