The Hager Klik 4 is a modular plug-in marshalling solution for lighting systems that provides simultaneous mechanical and electrical connection in one clickin action. Designed for on-load connection & disconnection, Klik 4 allows individual light fittings to be removed or added without affecting other fittings on the circuit. 3 pin moulded plugs and leads distribute switch live, neutral and earth while 4 pin providing an additional connection, normally a permanent live for emergency lighting. Pre-wired or self-wired plugs provide a highly adaptable solution for when systems need to be altered. Klik significantly cuts down on installation time by limiting the testing requirements. The system is known for its ease of installation, adaptability, and energy-efficient features.
The system is future proof as being a pluggable system the prospect of future refurbishments is easily done as lighting can be relocated quickly and easily.
Some items within the range are as follows:

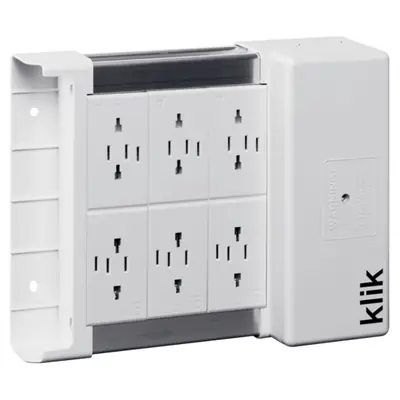

Lighting distributor box
The Hager Klik marshalling boxes are wall-mounted and used in conjuntion with Klik 3 and Klik 4 pin plugs to connect luminaires/lighting within an area. The Klik marshalling box can be seperated into two independently switched circuits. These can be controlled via wall switch or occupancy sensor. Main terminal rating is 16 amps, with a socket outlet of 6 amps
In addition to the KLDS6 we also stock the 8, 10 and 12 outlet boxes, see below:
* Hager KLDS8 | 8 Outlet Marshalling Box Lighting Distribution Connector
* Hager KLDS10 | 10 Outlet Marshalling Box Lighting Distribution Connector
* Hager KLDS12 | 12 Outlet Marshalling Box Lighting Distribution Connector

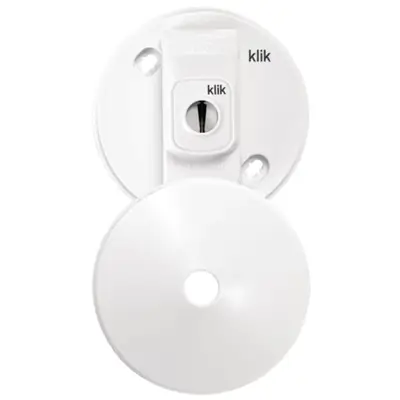

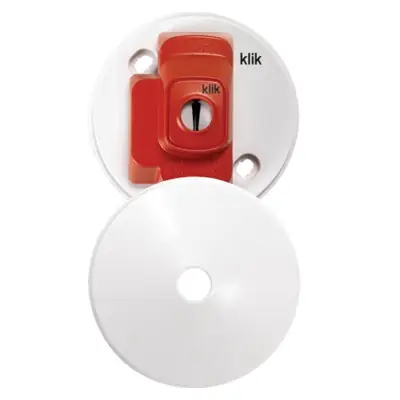

Hager Klik Ceiling Rose and Cover
The 6A plug-in ceiling rose is used to offer pluggable connection for luminaires/lighting. These can be connected/disconnected under load.

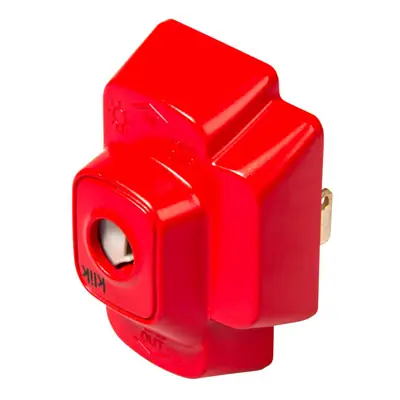

Hager Klik Plugs
Klik 3 & 4 pin plugs are used to connect into a Klik socket giving a pluggable connection to luminaiers/lighting.
