WAGO Cable Connectors

Why more and more electricians have turned to WAGO connectors

What are electrical cable connectors?

Electrical cable connectors, also referred to as terminals, are wiring accessories used to safely and securely connect or join multiple wires together onto a circuit. They feature an insulated housing that can safely carry the wires’ current.

---

What are WAGO cable connectors?

Wago connectors are an increasingly popular wire connector choice for electrical contractors. This is largely due to their world-leading spring clamp connection technology that ensures a simplified and secure wire connection. Wago was the first company to switch from traditional tools and screws to the now popularly used spring pressure technology.

They are a hassle-free wiring solution that enables you to join two or more pieces of electrical wires together quickly and easily, whilst benefiting from vibration-resistance and maintenance-free connections. We will delve further into more of the benefits of Wago’s cable connectors later in the blog.

---

Types of WAGO connectors

Wago developed three main types of wire connectors consisting of two types of spring clamp connectors, and push-in wire connectors.

Wago 222-series

The WAGO 222-series is the classic and original Wago cable connector introduced in 2003. It is reusable and utilises a compact cage lever which ensures ease of use as you simply flip the lever to secure or release a connection. It can connect solid, stranded, and fine-stranded conductors without any hassle. In addition, it can be used in a range of applications such as in lighting fixtures, sun blinds, awnings, doors, gate controls, inter phones, pumps, loudspeakers, etc.

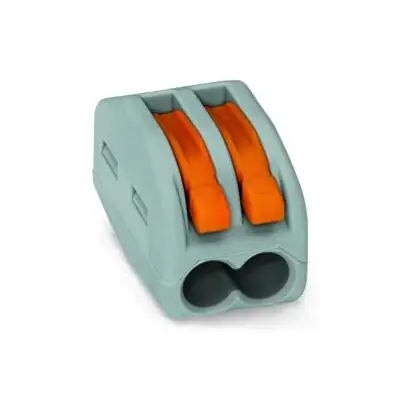

• The Wago 222-412 32A 2 Way Compact Lever Operated Cable Splicing Connector Terminal Block is a 2-way terminal block with a maximum current rating of 32A and voltage rating of 400V. It is designed for connecting solid, stranded, and fine-stranded conductors without the need for additional tools. The solid and stranded conductor sizes range from 0.08mm²-2.5mm² whilst the fine stranded conductor size ranges from 0.08mm²-4mm².

In terms of construction, it utilises a simple button-operated lever clamp system that ensures a fast, hassle-free, and secure termination of cables. It also features two test ports for easy testing of all standard test probes and a reduced operating force for easy splice termination. It also has a length indicator on the casing which details the correct length the wire should be stripped to. Finally, thanks to its compact housing profile, it is ideal for use in installations where spacing may be restricted, or where you may need to maximise wiring space in restricted environments such as in junction boxes.

We also stock the 3 way and 5 way versions of the Wago 222 Compact Lever Operated Cable Splicing Connector Terminal Blocks:

• The Wago 222-413 32A 3 Way Compact Lever Operated Cable Splicing Connector Terminal Block is a 3 way terminal block with a required cable stripped length of 9 to 10mm. It also has solid and stranded conductor sizes ranging from 0.08mm²-2.5mm² whilst the fine stranded conductor size ranges from 0.08mm²-4mm².
• The Wago 222-415 32A 5 Way Compact Lever Operated Cable Splicing Connector Terminal Block is a 5 way terminal block with solid and stranded conductor sizes ranging from 0.08mm²-2.5mm² whilst the fine stranded conductor size ranges from 0.08mm²-4mm².

---

Wago 221-series

These are the newest Wago spring clamp connectors with a smaller and transparent housing. This allows you to actually see the wire touching the insider connector, easily ensure that the connector and wires are inserted correctly, confirm the conductor’s depth, as well as strip to the correct length.

The Wago 221-series lever nuts are all rated at a maximum voltage of 450 volts. They allow for solid, stranded, or fine-stranded cables to be connected, all without requiring tools for completion. They also feature a length indicator that details the correct length the wire should be stripped to, helping to protect all live conductors against accidental contact. For added safety, they also come supplied with two test ports that allow for easy testing of all standard test probes, and a reduced operating force for easy splice termination.

Overall, the Wago 221-series provides an easy plug-in mounting installation process which saves you time and money with its simple and effective compact design.

Some of the Wago 221-series cable conductors we offer include:

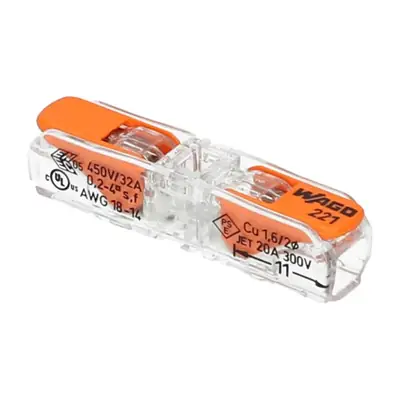

• The Wago 221-2411 32A 450V 4kV 0.2 – 4mm 2 Conductor Compact Inline Lever Connector for Junction Boxes is an inline splicing connector with a lever for all conductor types up to a maximum of 4 mm².

Key features:

• Designed to be used in conjunction with Wago’s 1-way to 5-way mounting carriers.
• Facilitates the easy termination of conductors without additional tools.

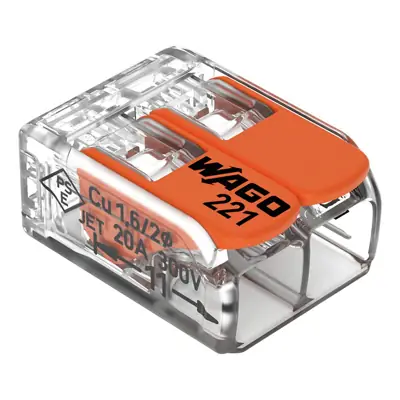

• The Wago 221-412 32A 2 Way Compact Lever Operated Cable Splicing Connector Terminal Block is a side-entry wiring compact and transparent 2-way terminal block with an operating lever lock.

Key features:

• Compact size – perfect for installations in areas where spacing is restricted.
• Reduced operating force for easy splice termination.
• Solid and stranded conductor sizes range from 0.2mm² to 4mm², and flexible conductor sizes range from 0.14mm² to 4mm².

• The Wago 221-612 41A 450V 4kV 0.5 – 6mm 2 Way Compact Lever Operated Cable Splicing Connector Terminal Block is a cable mounting splicing connector for a 2-conductor connection, with operating levers.

Key features:

• Accepts wire sizes of 20-10AWG (0.5-6mm²).
• Length indicator which shows users the correct length a wire should be stripped to in order to ensure all live conductors are protected against any accidental contact.
• Solid and stranded conductor sizes range from 0.2mm² to 6mm² whilst the flexible conductor size ranges from 0.14mm² to 6mm² and requires a cable-stripped length of 11mm.

Mounting Carriers:

These are ideal for screw mounting only.

The mounting carriers we offer are suitable for use with the Wago 221–2411 inline splicing connectors. They feature a spring clamp that helps ensure a secure and vibration-resistant connection. And fortunately, these are very easy to use. They also have a compact, ergonomic design that is suitable for use in areas where spacing may be an issue. Additionally, thanks to their corrosion-resistance construction, the Wago mounting carriers are long-lasting, durable, and safe to use in harsh environments.

We offer mounting carriers with multiple ways available – all supplied as a pack of 5 – such as:

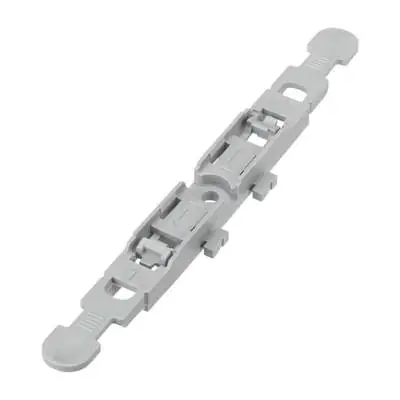

• The Wago 221-2501 which is a single mounting carrier with strain relief that is ideal for use with the Wago 221-2411 inline splicing connector.
• The Wago 221-2502 which is a 2-way screw mounting carrier also suitable for use with an inline splicing connector with lever (221-2411).
• … up to the Wago 221-2505 which is a 5-way mounting carrier with strain relief, perfect for fixed installation of a 5 x 221-2411 in-line splicing connector with levers.

Wago 221-series kits

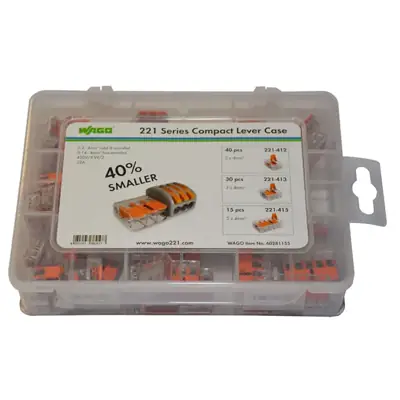

• The Wago 60281155 221 Series 85 Pieces Compact Lever Case Connectors Kit contains 40 x 221-412 – 2 Pole Compact Lever Operated Connectors; 30 x 221-413 – 3 Pole Compact Lever Operated Connectors; and 15 x 221-415 – 5 Pole Compact Lever Operated Connectors. These come supplied in a handy and portable casing with transparent housing.

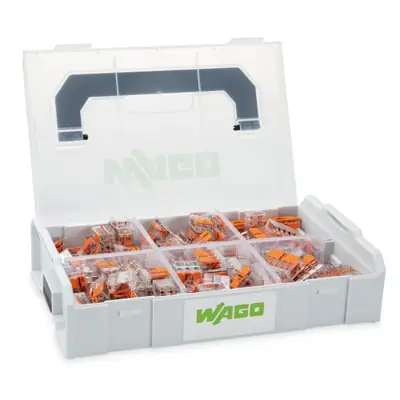

• The Wago 887-957 221 Series L-BOXX Mini 235 Pieces Compact Lever Operated Cable Splicing Connector Terminal Block Set contains 40 transparent 2 x 0.5 … 6 mm² 221-612 compact splicing connectors; 30 transparent 3 x 0.5 … 6 mm² 221-613 compact splicing connectors; 15 transparent 5 x 0.5 … 6 mm² 221-615 compact splicing connectors; 75 transparent 2 x 0.14 … 4 mm² 221-412 compact splicing connectors; 50 transparent 3 x 0.14 … 4 mm² 221-413 compact splicing connectors; 25 transparent 5 x 0.14 … 4 mm² 221-415 compact splicing connectors; and 1 221-500 mounting carrier. These are all housed in a compact, stackable, and reusable transparent storage case.

Furthermore, note that these compact lever connectors allow fast and safe wiring for solid 0.2-4mm², stranded 0.14-4mm2, and flexible conductors thanks to the cage clamp connection.

---

Lighting Cable Connectors Wago 224 series:

These allow you to ideally connect solid and fine-stranded conductors. They can therefore be used in nearly all household applications and similar building installations where a connection between solid and fine-stranded conductors is required. In addition, they are simple, tool-free connectors that are suitable for a range of applications such as when connecting devices with flexible conductors to fixed installations.

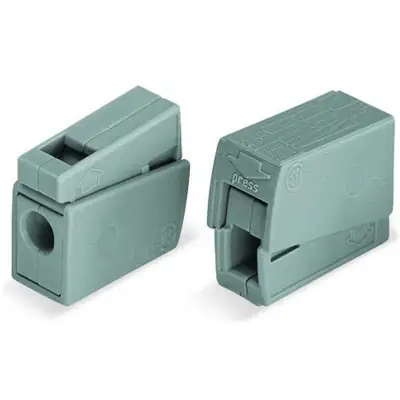

• The Wago 224-101 0.5mm – 2.5mm 2 Way Lighting Cable Connector is a versatile wire connector suitable for two cable terminations and ideal for use with the Wago light junction box 51257303.

It enables connections between solid and fine stranded cables, ideal for a variety of applications such as lighting, automated blinds, awnings, window or bathroom fans, boiler timers, or tight connections of electrical devices with stranded conductors thanks to the fast and simple installation that does not require any specialist tools.

Key features:

• A sturdy button-operated cable cage clamp – for use with stranded cables between 0.5mm² to 2.5mm², which is ideal for the protection of a flex wire termination.
• An integrated cable clamp that reduces termination strain for a long-lasting, dependable, and vibration-proof interconnection installation between solid and flex cables.
• Combines push-fit connection for a solid cable that is between 1 to 2.5mm².

Additionally, to protect all live conductors and cable elements from accidental contact, the 224-101 should be stripped to the correct length of 9-11mm.

We also stock the 3 way version of the Wago Lighting cable connector:

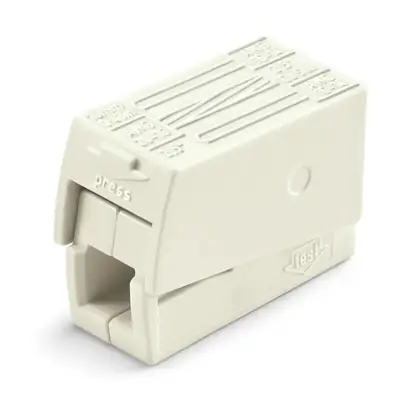

• The Wago 224-112 0.5mm – 2.5mm 3 Way Lighting Cable Connector is ideal for 3 cable terminations.

---

Wago Push-In Wire Connectors

Wago’s push-in wire connectors are also reusable however, they can only be used with solid conductors/wires. They are designed to ensure an easier process of connecting wires together. The Wago 2773-series push-in wire connectors offer safety of contact thanks to their low insertion and high retention forces. In addition, they are ideal for use in a wide range of domestic and industrial applications.

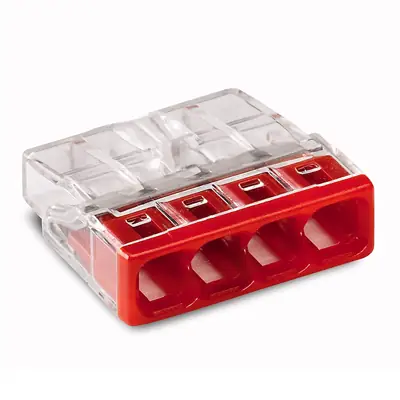

• The Wago 2273-204 24A 450V 4kV 0.5 – 2.5mm 4 Conductor Compact Push Wire Connector for Junction Boxes is a cable-mounting connector for junction boxes and 4-way conductor terminal blocks. It has a 24A current rating, 18-14 AWG wire size, and 0.5-2.5mm² solid conductor cross-section range.

Key features:

• Push-in termination – allows users to simply push the stripped conductor into the connector to make a connection.
• A spring clamp connection – allows safe and fast wiring for solid conductors.
• 1 x test port – for easing testing which is optimised for all standard test probes.

This is all housed in a red/transparent case that allows for visual inspection of the wire to ensure correct wiring, to check if the conductors have been stripped properly, and that the conductor is secure.

Overall, it is suitable for industrial, communications & networking, lighting, security, signalling, and HVAC applications.

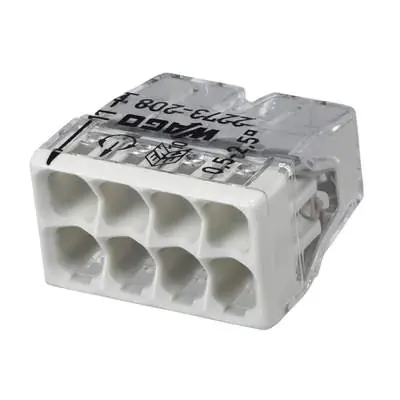

• We also stock the Wago 2273-208 24A 450V 4kV 0.5 – 2.5mm 8 Conductor Compact Push Wire Connector for Junction Boxes which is the 8-way version of the push-in solid core connector for solid conductors.

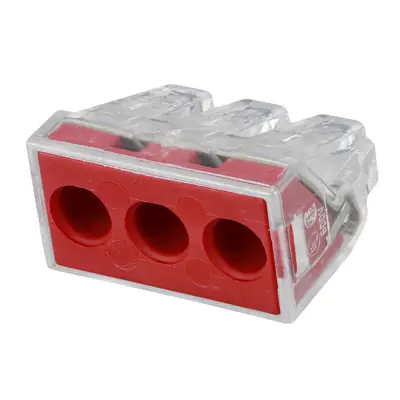

Another type of push-in wire connector we offer is the Wago 773-173 41A 400V 4kV 2.5 – 6mm 3 Conductor Compact Push Wire Connector for Junction Boxes which can be used for solid (2.5mm ²) and stranded (4mm ² to 6mm ²) conductors.

Key features:

• A test point at the base
• A push-in cage clamp.
• Reusable and can be easily removed.

Applications include: junction boxes in ceiling, wall or floor; low voltage lighting systems; wall-mounted consumer units; and power distributions.

---

How do you use Wago cable connectors?

1. Use a wire cutter to remove the appropriate level of insulation.
2. Lift the lever connector and then insert the wire.
3. Once the wire is inserted, shut the lever connector.
4. Finally, ensure you test the voltage found on the top of the compact wire connector.

---

Wago connectors vs traditional cable connectors

• Prevents electricians from having to use a screwdriver on a potentially live current, thereby reducing the risk of electrical shocks.
• Maintenance-free and easy-to-replace terminal strips whilst minimising shocks, short circuits, and other risks.
• Easy to quickly remove and replace wires as the wires are not twisted together.
• Ability to visually confirm that the electrical connections are safe.
• High-quality material construction which is less susceptible to brittle and screw head damage than traditional cable connectors.

---

Key benefits of Wago cable connector and their connection technology:

• Reduced wiring time by up to 50% which in turn reduces your labour costs.
• The simple and sturdy lever clamp system protects the conductor from any accidental damage or from coming loose.
• Features a length indicator letting you know the appropriate length the wire should be stripped to, eliminating the danger of over or under-stripping the conductor.
• Vibration-proof, reliable and secure connections ensured.
• Maintenance-free spring pressure connection technology
• Products with CAGE CLAMP® technology can also be used in harsh environments.
• Provides an easy plug-in mounting installation process which ensures time and money savings.
• A simple and compact case that is ideal for installations in areas where spacing is restricted and where you may need to maximise wiring space inside a junction box.

---

In conclusion, Wago cable connectors are becoming increasingly popular amongst electricians due to their track record for safety and reliability. In addition, they are subjected to rigorous testing in terms of their mechanical, electrical, material, and environmental capabilities. This ensures all Wago cable connectors are of the highest levels of quality, safety, and reliability, and that they comply with all relevant product standards.
